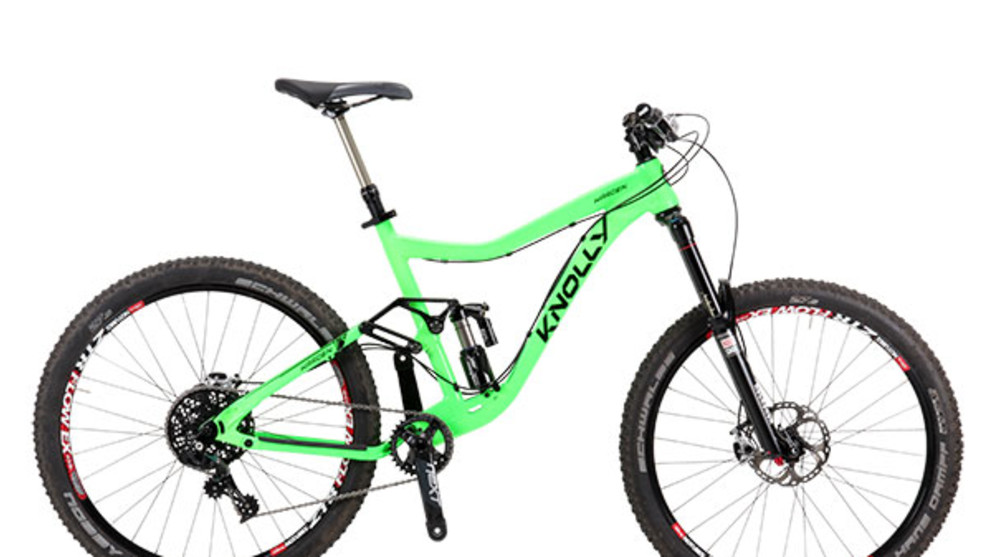

Knolly Warden

A funny thing happened to me whilst out test-riding the Knolly Warden, and not just once. Every time I rode past an assembly of teenage mountain bikers they cheered, and it wasn’t just the usual ‘nice bike, mate’, but full on whooping, whistling, and yelling.

I should be very clear that their unrestrained enthusiasm was for the bike rather than the rider, and it’s something I’ve never encountered before. So why is it that a small brand with no World Cup podiums, no Redbull Rampage wins, and in reality a very small presence in the mountain biking scene can provoke such fervent passion? After spending a few months on Knolly’s latest offering I’ve perhaps gained a little insight into that question; a sneak peek into the ‘Knolly Knation’ as it’s known, and here’s what I’ve learned.

If you’re not already aware, Knolly is a small, rider-owned company from British Columbia. Their proximity to the famous (and sometimes infamous) riding areas of Vancouver’s North Shore, the big mountains of Whistler, and numerous other world class riding areas in BC, has undoubtedly played a pivotal role in shaping the bikes they design and build.

Instead of focusing their efforts on the elite racing scene Knolly’s bikes, and the people who ride them, are more about the thrill of riding challenging trails, travelling with friends to explore new MTB possibilities and generally pushing the boundaries of mountain biking in every possible direction. The term ‘freeride’ might have dropped out of favour in the last few years, but Knolly riders like James Doerfling, Ryan Berrecloth and Garrett Bueller epitomise what freeride has become; riding big, riding fast and riding hard, riding for the sheer love of the challenge and to share that experience with good friends.

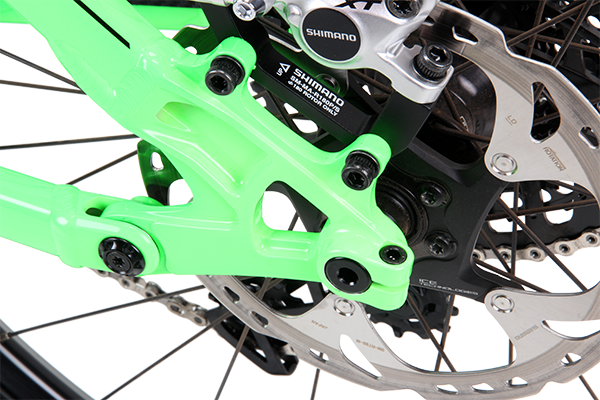

The bolt-up 142x12 axle isn’t as speedy when it comes to wheel removal but it’s both simple and very solid.

Knolly’s bikes are made for riders such as these, and there’s perhaps none more capable and versatile than the new 150mm-travel Warden. It’s available in Australia either as a frame-only or with a range of complete build kits featuring other Canadian brands like Race Face and Chromag. Built with high end components like our test bike, it’ll set you back $6,950. Alternately you can purchase the frame for $3,250 with a Cane Creek DBAir. We’re not going to pretend that this is cheap, however for a high-quality boutique brand it mightn’t be as much as you’d expect. The weight of 3,612g with the 500g DBAir shock is competitive for a  solidly built aluminium bike, and our test  rig came in over a pound under the magic  30lb (13.65kg) mark at 13.16kg with a  dropper post (but without pedals).

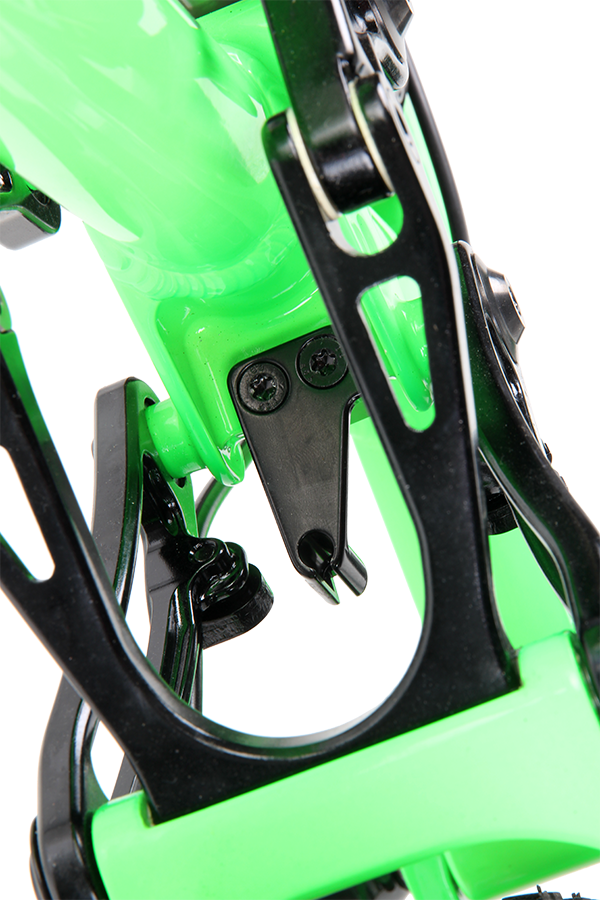

Running a one-by drivetrain? Just unbolt the front derailleur cable stop and the bike will look even cleaner and tidier.

Despite being a totally new design and the  first Knolly bike with 27.5 wheels, the Warden  still looks unmistakably like the rest of  the Knolly family. The full-length, straight  and heavily raked seat tube has long been  one of their signatures. This allowed you  to slam the seat completely out of the way  long before dropper posts existed, while the  raked back angle provides a comfortably  stretched riding position with the saddle at  full height. There’s also the instantly recognisable  ‘Four by 4’ suspension linkage, but  we’ll come back to that in a little bit.

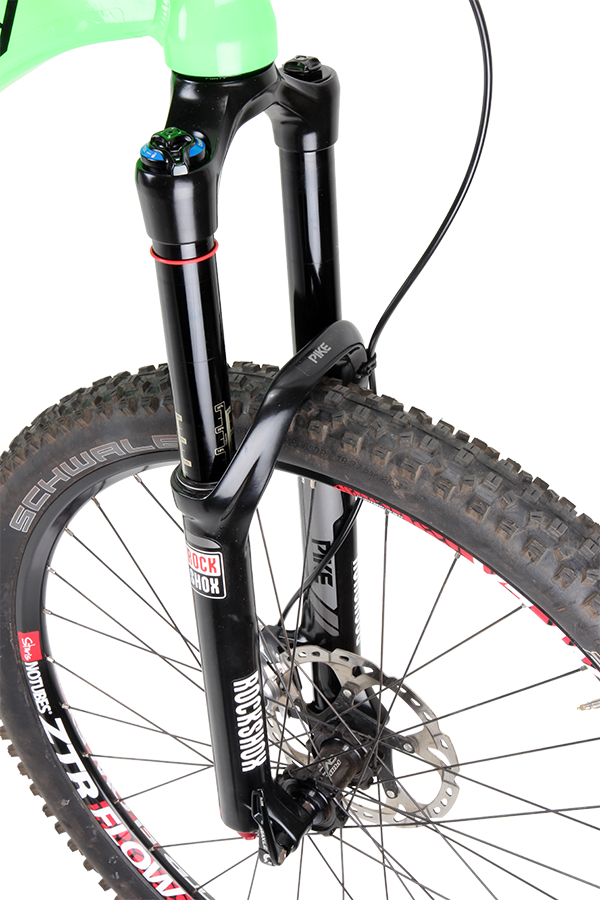

The RockShox Pike is a perfect match for the Warden; it more than holds its own in rough and burly terrain.

The heavily manipulated aluminium  frames are now manufactured, impeccably  I might add, in Asia, but Knolly claims to  custom design every single tube on every  bike rather than buying off-the-shelf parts.  They also custom design their own titanium  pivot hardware and all of the torque  specs are listed on their website. Colour  choices are mostly bright, but the graphics  are clean and classy enough to prevent  you feeling like you’re riding a fluorescent  advertisement—the unique appearance of  the Warden is something that definitely  grows on you.

A threaded bottom bracket makes servicing easier and the swingarm runs on good-sized double row angular contact bearings—all built to last.

Knolly bikes have earned an enviable reputation  for reliability, versatility and ease of  maintenance. Rather than following current  trends, they use design elements that prioritise  function over fashion. The well thought  out full length external cable routing is one  such example; it might not look as tidy as  internal routing but it’s much faster and  easier to service and is completely rattle  free. There’s provision for either an internally  or externally routed dropper seatpost,  and if you’re running a one-by drivetrain,  the cable guide for the E-type direct mount  front derailleur can be completely removed  to provide a clean look.

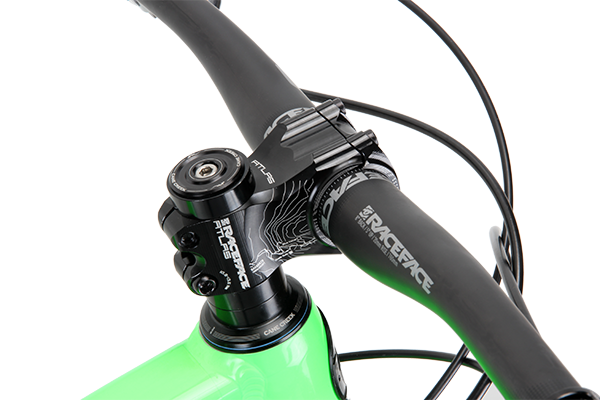

The test bike came with a very bling build kit, complete with this sweet looking Race Face Atlas stem and light but 760mm wide Next 35 carbon handlebars.

Of course there are ISCG tabs and mechanics  around the world will collectively  rejoice that the Warden uses a threaded  bottom bracket rather than the harder to  service press-fit style. The rear brake uses  the older ‘international standard’ mount;  it’s marginally heavier than a post mount  setup but it eliminates the chance of  stripping a thread in the frame. All these  little details show that Knolly aren’t just  jumping on the latest bandwagon; they’re  happy to adopt new standards, but only  when there’s a perceived functional benefit.

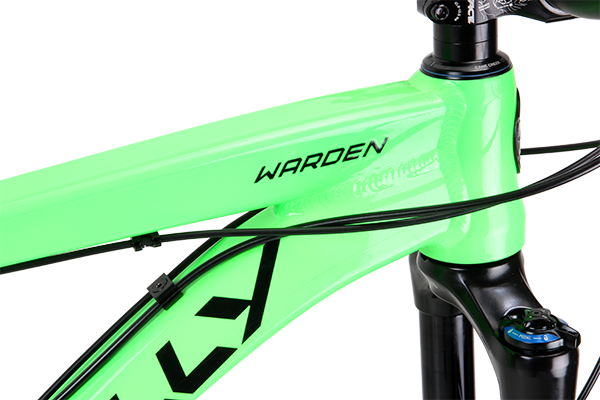

External cables may be unfashionable but they didn’t rattle (like many internal jobs) and they offer greater flexibility for different setups; for example, you’ll get tidy and rub-free hose routing whether you run your rear brake to the left or right side of the bars.

KNOLLY KNOWLEDGE

Geometry, not suspension travel, is  perhaps the single most important factor  in determining how a bike rides, and here  the Warden again shows Knolly’s desire to  forge their own path. As the push for longlow-  slack bikes continues, we’re starting to  see head angles on many of the Warden’s  competitors pushing into 65-degree territory.  That’s all well and good when your sole purpose  is to go downhill at breakneck speed,  but it definitely compromises low speed  manoeuvrability and climbing precision.

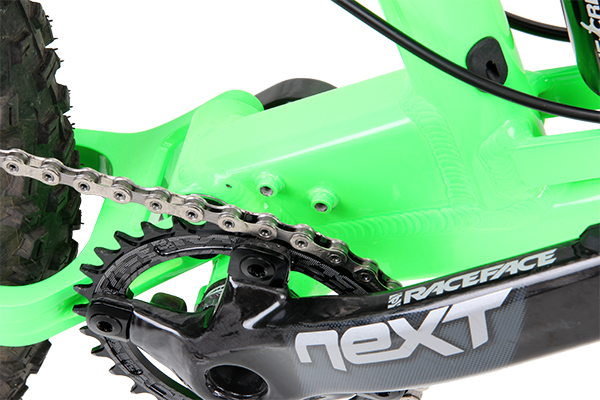

While it can run a front derailleur, the low-direct mounting system provides a clean and tidy appearance if you opt for a one-by drivetrain like our test bike.

Knolly completely avoid using the ‘E’  word to describe the Warden, and I suspect  it’s on purpose. In theory at least, enduro  bikes only have to pedal up relatively  smooth and not-too-steep trails in order  to access descents that wouldn’t be out of  place on a World Cup DH course, and it’s  the descents that really matter in gravity  enduro racing. As a result, enduro bikes  are often single-purpose winch and plummet  machines. The Warden, on the other  hand, is designed to get you up or down  just about any trail you can imagine riding.

The 66 or 67-degree (adjustable) head  angle strikes a good compromise between  the conflicting requirements of climbing  and descending whilst still being plenty  slack enough to not induce puckering  when speeds and descent angles increase.  Likewise, the bottom bracket height (also  with two settings) is 5-10mm higher than  many of the competitors. It’s still low  enough to feel stable at high velocity but  with enough pedal clearance to get you  back up the same trail for another run.

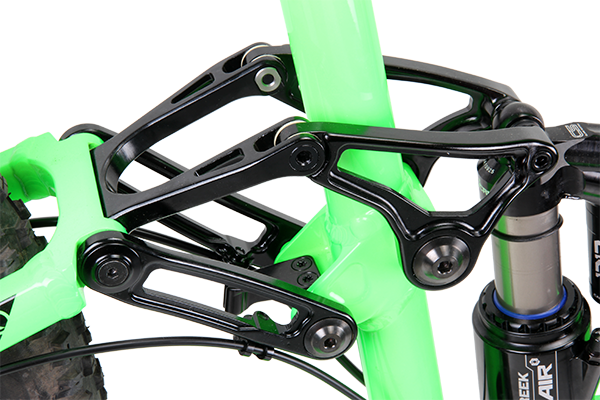

The extra link between the seat stay member and the rocker link gives Knolly greater flexibility in tuning the leverage ratio. With the Warden they’ve given it a simple progressive rate; great initial suppleness with added bottom-out resistance.

Our local trails are steep with an  abundance of rocks and roots. They are  also tight and I actually found the steeper/  higher setting to be the best all-around option.  If your trails are open and fast you’ll  likely prefer the low and slack option, but  having a choice highlights the Warden’s versatility—this is no one trick pony.

It’s also worth mentioning that the   raked seat tube creates the illusion of long   chainstays whereas in fact they’re only   429mm long. That’s shorter than most   comparable 27.5 wheeled bikes and even   some 26ers. Combined with the relatively   long front-centre, the Warden maintains a   high degree of manoeuvrability whilst still   being long enough to feel stable at speed.

TWO WHEELED FOUR BY 4

The other visually striking and distinctive element of the Warden, and all Knolly bikes for that matter, is their proprietary and patented Four by 4 suspension design. It’s a variation on the common Horst Link design, which designer Noel Buckley developed  to allow a greater degree of independent  control of the often conflicting elements  of bicycle suspension. The four rearmost  pivots determine axle path, pedalling behaviour  and braking activity just like they  would with a traditional four-bar linkage. However, by adding a second smaller parallelogram  to drive the shock, the leverage  ratio can be manipulated without having  any effect on the other parameters. It does  add a few hundred grams, two extra pivots  and an extra link to the suspension, but  nonetheless it’s a clever way of gaining  extra control of suspension design.

The design is very neatly executed too; the shared pivot at the top of the seat stays  is a particular example of saving weight  and reducing complexity. Double row angular  contact bearings are used in the main pivot and most of the other points spin  on sealed ball bearing too, with high load  bushes in the upper link junction. Although  none of the links appear especially burly, the main pivot and the three large pivots  from the seat tube back use full width  axles. You’ll also find double-sided clevis  joints on the rear axle pivot and the upper  link pivot. The net effect of all this is a suspension  system which is both very laterally  stiff, and inherently well aligned between  the two sides, which ultimately means less  wear on the bearings, smoother operation  and longer maintenance intervals.

Many current suspension designs also  run fairly high levels of anti-squat; the  chain torque introduced when pedalling  works to stiffen the suspension and resist  its natural tendency to compress as the bike  accelerates. Knolly takes a very different  approach. Because they wanted the Four  by 4 suspension to be totally active at all times, even when pedalling, they’ve chosen  to keep anti-squat at exceptionally low  levels. This does result in a loss of pedalling efficiency especially when out of the  saddle, however it allows the rear wheels to  hug the trail surface in a way that wouldn’t  otherwise be possible. This again reveals  the inherent nature of the Warden as a bike designed not just for climbing on easy  ground, but for pushing the limits of traction  on even the most marginal, stepped  and rutted ascents—the sort of stuff you’re  likely to find aplenty in North Vancouver.

And let me tell you right now that it  works. There are a lot of bikes these days  that climb well, particularly on easy to  moderate terrain where efficiency and  momentum are the keys to cleaning an  ascent. This is not where the Warden shines; it bobs more than you’d like and generally  feels a bit sluggish. On chunkier terrain at  lower speeds and whenever traction is questionable, the Warden comes into its own. If  you can keep your legs spinning and weight  over the rear tyre it’ll keep trucking along  whilst other bikes are spinning, slipping, bouncing, and falling by the wayside.

The Cane Creek Double Barrel CS shock adds weight, complexity and cost but it opens up the suspension tuning possibilities in a big way.

As an example, there’s a short uphill  section on one of my local trails that is  horrendously awkward; it’s filled with rounded, slimy, 20cm high boulders and  off-camber roots. You crawl uphill at  barely walking pace for 15 metres, changing  direction every few pedal strokes  to stay on line. I don’t remember ever  succeeding on it before, but on my first  ride on the Warden I cleaned it first try,  and then cleaned it again second try. The  Warden is like a 4X4 rock crawler; take  it out on the highway at 100km/h and  it’ll feel soft, mushy and horrible, but put  a two metre high almost vertical boulder  in front of it and it’ll clamber up like it’s  barely even there.

We all know that one-by drivetrains are  the hot ticket right now, but I’m going to  suggest that the Warden is a perfect candidate  for a more traditional two-by setup.  Smaller chainrings provide higher antisquat  force; with a 22 or 24 tooth granny  ring up front, the Warden would pedal  much more efficiently on moderate climbs  but still have less anti-squat than the vast  majority of other bikes so as to still maintain  its climbing prowess in the rough. It’s  worth taking a leaf from Knolly’s own  book here; don’t just follow what everyone  else is doing, but instead go with what  works best for you and your terrain.

In many respects the monster truck  personality continues when you point the  Warden downhill. It’s somewhat tardy  pedalling manners mean it’s not the fastest  accelerating bike on the trail, and its desire  to hug the ground, so beneficial when  climbing, means that it feels far more  planted than playful, more plough than  plane. While it’ll manual easily and given  enough encouragement from a lip it’ll  launch predictably and precisely through  the air, it also lacks the lively, poppy feel  that sees some other bikes dance effortlessly  from point to point down the trail.

What the Warden does do is allow you to  pick a line and hold it with almost complete  disregard for obstacles and sensible line  selection. You don’t need to take smooth  lines into consideration for braking either, because the Four by 4 linkage feels totally  unaffected by the anchors. Solid, stiff and  stable are what the Warden does best, and  it does them exceptionally well. However it  also needs challenging terrain and serious  speed to awaken the sleeping beast within;  without them, it just feels like taking your  lifted LandCruiser to the drag strip.

GETTING CANED

As mentioned, the Warden comes standard  with Cane Creek’s much lauded DBAir  CS (Climb Switch) shock, and as with any  bike the shock is a key component of how  the suspension feels on trail. The Climb  Switch slows both compression and rebound  damping, and whilst it does work exactly  as claimed, it also tends to stifle the active  nature of the Warden’s suspension; in some  ways detracts from the bike’s best attribute.

The DBAir has a very wide adjustment  range and a fairly complex damper  arrangement that allows it to be set up  for virtually any bike and any rider. This  means you need to take some proper time  to get it set up right. We’ve ridden this  shock on a couple of different bikes now,  and are starting to suspect that riders of  70kg or less are right at the extreme end  of its adjustment range; even with compression  and rebound damping wound all  the way out it didn’t feel under-damped.  The Warden (like another bike we’ve ridden  with a DBAir) has a very progressive  suspension design, and this combined with  a lighter rider weight may be the cause of  the slightly dead feel we encountered. We  can only speculate, but it’s possible that  heavier riders may well be able to set up  the Warden’s shock to feel much livelier;  the only way you can know for sure is to  track down a Warden at one of the many  events where Knolly runs demo days.

A few months on the Warden and I can  see why Knolly have built a very loyal and  proud fan base; they design and make  unique mountain bikes that are all about  the love of riding challenging trails, and  they make them in such a way that you’ll  be spending a lot more time riding your  bike than fixing it. The Warden may not  be the lightest, or the cheapest, or the most  efficient option on the market, but it’s  certainly one of the most adaptable, most  competent and easiest to live with in the  long term. It definitely needs committing  terrain, and an equally committed rider to  bring out its best, but if that’s you then I  suspect buying into the Knolly Knation is  something you won’t regret. And you’ll  have hordes of other riders cheering you  on every time you hit the trail.

Thumbs Up

• Active, ground hugging suspension

• Well-considered geometry

• Designed for purpose, not fashion

Thumbs Down

• Not a responsive or efficient bike to pedal

• Shock lacks ‘liveliness’ under a lighter rider

SPECIFICATIONS

Frame: 6066 Series Alloy

Shock: Cane Creek DB Air 150mm Travel

Fork: RockShox Pike RCT3 160mm travel

Headset: Cane Creek 40 Integrated

Handlebars: Race Face Next 760mm

Stem: Race Face Atlas 65mm

Shifter: SRAM X01

Front Derailleur: N/A

Rear Derailleur: SRAM X01

Cassette: SRAM X01, 10/42 11-speed

Chain: SRAM X01

Cranks: Race Face Next Cinch

Bottom Bracket: Race Face

Pedals: N/A

Brakes: Shimano XT

Wheels: Stan’s ZTR Flow EX

Tyres: Schwalbe Hans Dampf 2.35

Saddle: Chromag Lynx

Seatpost: KS Lev

Weight: 13.16kg without pedals (Large frame 3,612g)

Available Sizes: S, M, L (tested) & XL

Price: $6,950 (frame only $3,250)

Distributor: Endless Flow Cycles (02) 4285 2993

www.endlessflowcycles.com.au
